[C#]PC로 미쯔비시 PLC 제어하기-연결상태 문구표시하기-MX component
C#으로 MX component를 활용한 PLC 제어하기

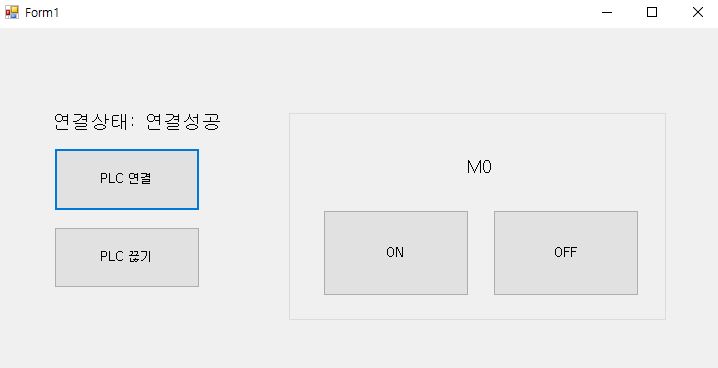

연결상태를 문구로 표시하기
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using ActUtlTypeLib;
namespace WindowsFormsApp3
{
public partial class Form1 : Form
{
public ActUtlType plc = new ActUtlType();
public Form1()
{
InitializeComponent();
}
private void button1_Click(object sender, EventArgs e)
{
plc.ActLogicalStationNumber = 1;
int nRtn = plc.Open();
if(nRtn == 0)
{
lbConnstatus.Text = "연결성공";
}
else
{
MessageBox.Show("연결 실패");
}
}
private void button2_Click(object sender, EventArgs e)
{
int nRtn = plc.Close();
if (nRtn == 0)
{
lbConnstatus.Text = "연결종료";
}
}
private void button3_Click(object sender, EventArgs e)
{
plc.SetDevice("M0", 1);
}
private void button4_Click(object sender, EventArgs e)
{
plc.SetDevice("M0", 0);
}
private void Form1_Load(object sender, EventArgs e)
{
}
}
}
